The Megger Test form serves as a crucial document in the assessment of electrical insulation integrity, particularly in various project settings. It encompasses key elements such as the project number, station identification, and the date of the test, providing essential context for the results. The form includes detailed measurements across multiple phases, specifically examining the voltage readings between different phases and between phases and neutral, as well as ground conductors. Each section is meticulously designed to capture data points like the voltage between Phase “A” to Phase “B,” Phase “A” to Phase “C,” and Phase “B” to Phase “C.” Additionally, the form requires identification of the feeder panel and circuit numbers, ensuring clarity in documentation. The roles of personnel involved, including the RPSC field engineer and project engineer or designee, are also noted along with their respective dates, which adds accountability to the testing process. Furthermore, the inclusion of a representative from NSF and the II inspector highlights the oversight involved in these evaluations. This structured approach not only aids in maintaining compliance with safety standards but also facilitates effective communication among project stakeholders.

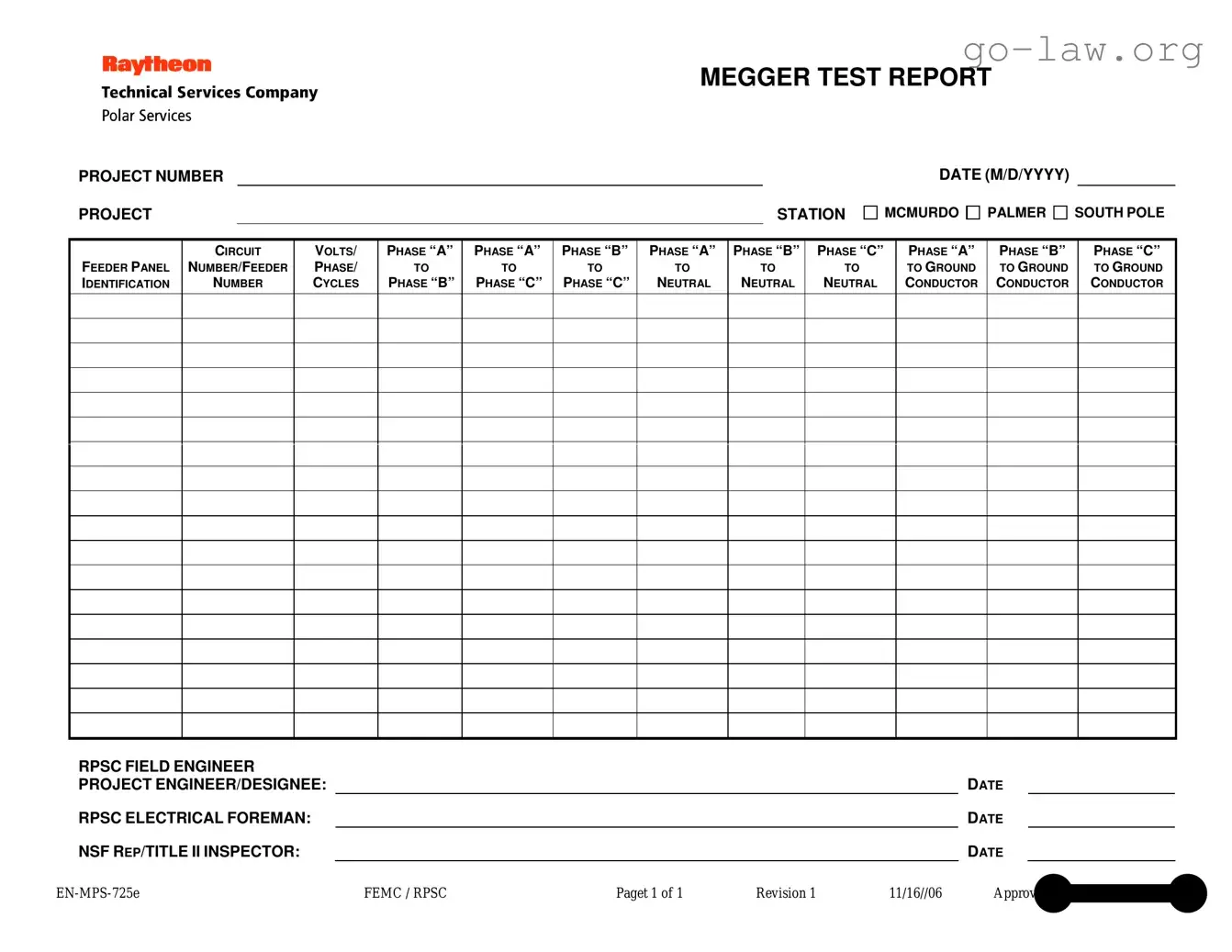

Preview - Megger Test Form

MEGGER TEST REPORT

PROJECT NUMBER

PROJECT



STATION

DATE (M/D/YYYY)

MCMURDO PALMER SOUTH POLE

FEEDER PANEL IDENTIFICATION

CIRCUIT

NUMBER/FEEDER

NUMBER

VOLTS/

PHASE/

CYCLES

PHASE “A”

TO

PHASE “B”

PHASE “A”

TO

PHASE “C”

PHASE “B”

TO

PHASE “C”

PHASE “A”

TO

NEUTRAL

PHASE “B”

TO

NEUTRAL

PHASE “C”

TO

NEUTRAL

PHASE “A”

TO GROUND CONDUCTOR

PHASE “B”

TO GROUND CONDUCTOR

PHASE “C”

TO GROUND CONDUCTOR

RPSC FIELD ENGINEER













PROJECT ENGINEER/DESIGNEE:









DATE



RPSC ELECTRICAL FOREMAN:









DATE



NSF REP/TITLE II INSPECTOR:









DATE



EN-MPS-725e

FEMC / RPSC

Paget 1 of 1

Revision 1

11/16//06

Approved by Wayne L. Cornell

Document Specifics

Fact Name Details
Project Number Each Megger Test Report includes a unique project number for identification.
Test Date The date of the test is recorded in the format M/D/YYYY.
Locations This report is used at McMurdo, Palmer, and South Pole stations.
Voltage Measurements It records voltage measurements between phases and to neutral and ground.
Field Engineer The report must be signed by the RPSC Field Engineer.
Governing Law Forms are governed by federal regulations and specific state electrical codes.

Megger Test: Usage Instruction

Filling out the Megger Test form requires attention to detail. Each section must be completed accurately to ensure the test results are reliable and useful for future reference. Follow these steps to fill out the form correctly.

  1. Locate the PROJECT NUMBER field at the top of the form and enter the appropriate project number.
  2. In the PROJECT STATION field, select from the options: MCMURDO, PALMER, or SOUTH POLE.
  3. Fill in the DATE field using the format M/D/YYYY.
  4. Identify the FEEDER PANEL IDENTIFICATION and write it down in the designated area.
  5. Enter the CIRCUIT NUMBER/FEEDER NUMBER in the corresponding field.
  6. In the VOLTS/PHASE/CYCLES section, input the relevant voltage, phase, and cycles information.
  7. Complete the measurements for PHASE “A” TO PHASE “B”, PHASE “A” TO PHASE “C”, and PHASE “B” TO PHASE “C” by recording the test results in the appropriate spaces.
  8. Record the values for PHASE “A” TO NEUTRAL, PHASE “B” TO NEUTRAL, and PHASE “C” TO NEUTRAL.
  9. Enter the readings for PHASE “A” TO GROUND, PHASE “B” TO GROUND, and PHASE “C” TO GROUND.
  10. In the RPSC FIELD ENGINEER section, write the name of the field engineer conducting the test.
  11. Fill in the PROJECT ENGINEER/DESIGNEE field and include the date.
  12. Have the RPSC ELECTRICAL FOREMAN sign and date the form.
  13. Finally, the NSF REP/TITLE II INSPECTOR must sign and date the form to complete the process.

Learn More on Megger Test

What is the purpose of the Megger Test form?

The Megger Test form serves as a standardized document to record the results of insulation resistance tests conducted on electrical systems. By measuring the insulation resistance, the form helps assess the integrity of electrical components and ensures they are safe for operation. This is crucial in preventing electrical failures and ensuring the safety of both personnel and equipment.

What information is included in the Megger Test form?

The Megger Test form includes several key pieces of information:

  • Project number and station, which identify the specific location and project.
  • Date of the test, formatted as M/D/YYYY, to track when the assessment was conducted.
  • Feeder panel identification and circuit number, providing details about the electrical system being tested.
  • Voltage, phase, and cycles, which indicate the operational parameters of the electrical system.
  • Insulation resistance measurements between various phases and neutral, as well as ground connections, to evaluate the system's integrity.
  • Signatures of the RPSC field engineer, project engineer, electrical foreman, and NSF representative, ensuring accountability and verification of the test results.

How should the results of the Megger Test be interpreted?

The results of the Megger Test should be interpreted with care. Generally, higher insulation resistance values indicate better insulation quality. For most applications, a resistance value above 1 megohm is considered acceptable. However, specific requirements may vary based on the equipment and industry standards. It is essential to compare the recorded values against established benchmarks and to consult with a qualified professional if any values fall below acceptable thresholds.

Who is responsible for completing and signing the Megger Test form?

The responsibility for completing and signing the Megger Test form typically falls on several key individuals involved in the project. The RPSC field engineer conducts the test and records the results. The project engineer or designee reviews the findings and signs the form to confirm accuracy. Additionally, the electrical foreman and an NSF representative also provide their signatures, ensuring that multiple levels of oversight are present. This collaborative approach enhances accountability and accuracy in documenting the test results.

Common mistakes

Filling out the Megger Test form can seem straightforward, but mistakes are common. One frequent error is neglecting to include the project number. This number helps identify the specific project and is crucial for record-keeping. Without it, tracking the test results can become complicated.

Another mistake is failing to specify the feeder panel identification. This detail is important because it tells you which panel the tests are associated with. If this information is missing, it may lead to confusion about which system the results pertain to.

Some people overlook the date when filling out the form. Including the correct date is essential for documentation purposes. It helps ensure that the test results are accurate and can be referenced later if needed.

Incorrect voltage or phase details are also common errors. When recording voltages, ensure that you check each phase carefully. Mistakes in this section can lead to serious misunderstandings about the system's performance.

Another issue arises when the signature fields are left blank. Each signature represents an important role in the testing process. Without these signatures, the validity of the test results may be questioned.

Lastly, not double-checking the readings can lead to inaccuracies. It's important to verify each measurement before submitting the form. This simple step can prevent potential issues down the line and ensure that the test results are reliable.

Documents used along the form

The Megger Test form is a critical document used to record insulation resistance test results for electrical systems. Alongside this form, several other documents facilitate the overall testing and inspection process. Each of these documents plays a unique role in ensuring compliance and safety in electrical installations.

  • Test Plan: This document outlines the specific procedures and methodologies that will be used during the testing process. It includes details on the equipment to be tested, the testing environment, and any safety precautions that need to be taken. A well-defined test plan helps ensure consistency and reliability in results.
  • Inspection Checklist: This checklist serves as a guide for inspectors to verify that all necessary components are in place and functioning correctly before the Megger Test is conducted. It typically includes items such as equipment condition, labeling, and safety measures, ensuring that all relevant factors are considered prior to testing.
  • Calibration Certificate: A calibration certificate verifies that the testing equipment used for the Megger Test has been properly calibrated and is functioning within specified parameters. This document is essential for validating the accuracy of the test results and ensuring compliance with industry standards.
  • Test Results Summary: After conducting the Megger Test, a summary document is often created to compile and present the results in an accessible format. This summary may include graphical representations of the data, comparisons to previous tests, and recommendations for any necessary corrective actions.

These documents collectively enhance the reliability and integrity of the testing process, ensuring that electrical systems are safe and compliant with established standards. Each form serves a distinct purpose, contributing to a comprehensive approach to electrical testing and safety management.

Similar forms

The Megger Test form shares similarities with the Electrical Inspection Report. Both documents serve as essential tools in assessing the safety and functionality of electrical systems. The Electrical Inspection Report typically includes information about the circuits inspected, the voltage levels, and any deficiencies noted during the inspection. Like the Megger Test form, it records critical data that helps ensure compliance with safety standards and regulations.

Another document akin to the Megger Test form is the Circuit Testing Report. This report focuses on testing the performance of electrical circuits under various conditions. It includes measurements of voltage, current, and resistance, much like the Megger Test form. Both documents aim to provide a clear picture of the electrical system's health, helping engineers and technicians identify potential issues before they escalate.

The Commissioning Report is another document that resembles the Megger Test form. This report is created during the commissioning phase of a project and verifies that all systems are installed correctly and functioning as intended. It includes tests similar to those found in the Megger Test, ensuring that electrical systems meet design specifications and safety standards.

The Test and Inspection Certificate also has similarities with the Megger Test form. This certificate is issued after a thorough examination of an electrical installation. It includes details about the tests performed, results, and any corrective actions taken. Both documents emphasize the importance of documenting testing processes to maintain safety and compliance.

A Maintenance Log is another document that aligns with the Megger Test form. This log records routine maintenance activities, including electrical testing. It often includes data on previous tests and inspections, similar to the Megger Test form, allowing technicians to track the performance of electrical systems over time.

The Safety Inspection Checklist is also comparable to the Megger Test form. This checklist is used to ensure that all safety protocols are followed during electrical work. It often includes sections for documenting test results, just like the Megger Test form, reinforcing the importance of safety in electrical installations.

The Quality Assurance Report can be likened to the Megger Test form as well. This report documents the quality control measures taken during a project, including testing of electrical systems. Both documents serve to verify that the work meets established quality standards and helps prevent future failures.

Another relevant document is the Compliance Report. This report assesses whether electrical systems comply with local, state, and federal regulations. Similar to the Megger Test form, it includes test results and findings that demonstrate adherence to safety and performance standards.

The As-Built Drawings also share a connection with the Megger Test form. While primarily visual, these drawings document the final configuration of electrical systems. They often reference test results from documents like the Megger Test form, ensuring that all modifications and tests are accurately recorded for future reference.

Finally, the Project Completion Report is similar to the Megger Test form in that it summarizes all testing and inspections performed throughout a project. This report provides a comprehensive overview of the electrical system's performance, including results from tests like those conducted in the Megger Test, ensuring that all aspects of the project are complete and satisfactory.

Dos and Don'ts

When filling out the Megger Test form, it's important to ensure accuracy and clarity. Here are some dos and don'ts to guide you:

  • Do include the project number and station clearly at the top of the form.
  • Do use the correct date format (M/D/YYYY) to avoid confusion.
  • Do fill in all voltage and phase information accurately for each measurement.
  • Do ensure that the identification of the feeder panel is correct.
  • Don't leave any sections blank; fill in all required fields.
  • Don't use abbreviations or shorthand that may not be understood by others reviewing the form.

Following these guidelines will help maintain the integrity of the testing process and ensure that the information is useful for future reference.

Misconceptions

Misconceptions about the Megger Test can lead to misunderstandings regarding its purpose and implementation. Here are ten common misconceptions:

  1. The Megger Test is only for large electrical systems. Many believe that only extensive installations require this test. In reality, it is beneficial for any electrical system, regardless of size.
  2. All Megger Tests are the same. There are different types of Megger tests designed for various applications. Understanding the specific test needed is crucial for accurate results.
  3. A high resistance reading always indicates a good insulation. While high resistance is generally a good sign, it doesn't guarantee that insulation is flawless. Other factors can affect the readings.
  4. The Megger Test can be performed on live circuits. This test should only be conducted on de-energized circuits to ensure safety and accuracy. Performing it on live circuits can be dangerous.
  5. Results from the Megger Test are always definitive. Results can vary based on environmental conditions and the condition of the equipment. It's important to interpret them in context.
  6. The Megger Test is a one-time requirement. Regular testing is necessary to monitor insulation integrity over time. It should be part of a routine maintenance program.
  7. Megger Tests are only relevant for electrical engineers. While engineers often conduct these tests, maintenance personnel and electricians also benefit from understanding the results.
  8. Only the highest reading is acceptable. Acceptable resistance values can vary based on equipment and industry standards. It’s essential to know the specific requirements for each application.
  9. The Megger Test can identify all electrical issues. This test focuses on insulation resistance. Other tests may be necessary to diagnose different types of electrical problems.
  10. Once the Megger Test is passed, no further action is needed. Passing the test does not eliminate the need for ongoing monitoring and maintenance. Regular checks help ensure long-term safety and reliability.

Understanding these misconceptions can enhance the effectiveness of the Megger Test and contribute to safer electrical systems.

Key takeaways

When filling out and utilizing the Megger Test form, it is essential to approach the task with precision and clarity. Here are some key takeaways to ensure effective use of this critical document:

  • Project Identification: Clearly indicate the project number and station at the top of the form. This information is crucial for tracking and referencing.
  • Date Entry: Always fill in the date in the specified format (M/D/YYYY). Accurate dating helps maintain a reliable timeline for testing activities.
  • Feeder Panel Identification: Make sure to identify the feeder panel correctly. This detail is vital for understanding which circuits are being tested.
  • Voltage and Phase Information: Input the voltage, phase, and cycle information accurately. This data will inform the testing parameters and results.
  • Testing Measurements: Document the readings for all specified phase-to-phase, phase-to-neutral, and phase-to-ground measurements. Each entry should be clear and legible.
  • Signatures: Ensure that all necessary personnel sign the form, including the RPSC field engineer, project engineer/designee, electrical foreman, and NSF representative. This step confirms accountability and oversight.
  • Review for Completeness: Before submitting the form, double-check that all fields are filled out completely. Incomplete forms can lead to misunderstandings and errors in future assessments.

By adhering to these guidelines, you can enhance the reliability and usefulness of the Megger Test form, ultimately contributing to the safety and efficiency of electrical systems.
