The Manual J form is an essential tool for HVAC professionals, providing a standardized approach to calculating heating and cooling loads in residential buildings. This form focuses on room-by-room load calculations, which are critical for ensuring that HVAC systems are properly sized and efficient. It includes sections for design conditions, such as outdoor and indoor temperatures, as well as specific details about the construction quality and infiltration methods. The form also requires a comprehensive summary of heat loss and gain, accounting for factors like building components, ventilation, and duct losses. Additionally, it encompasses vital information regarding heating and cooling equipment, including manufacturers' specifications and performance ratings. By adhering to the guidelines set forth in the Manual J form, contractors can justify their equipment choices and ensure compliance with local building codes, particularly in regions like Utah, where climate conditions necessitate careful consideration of HVAC system design.

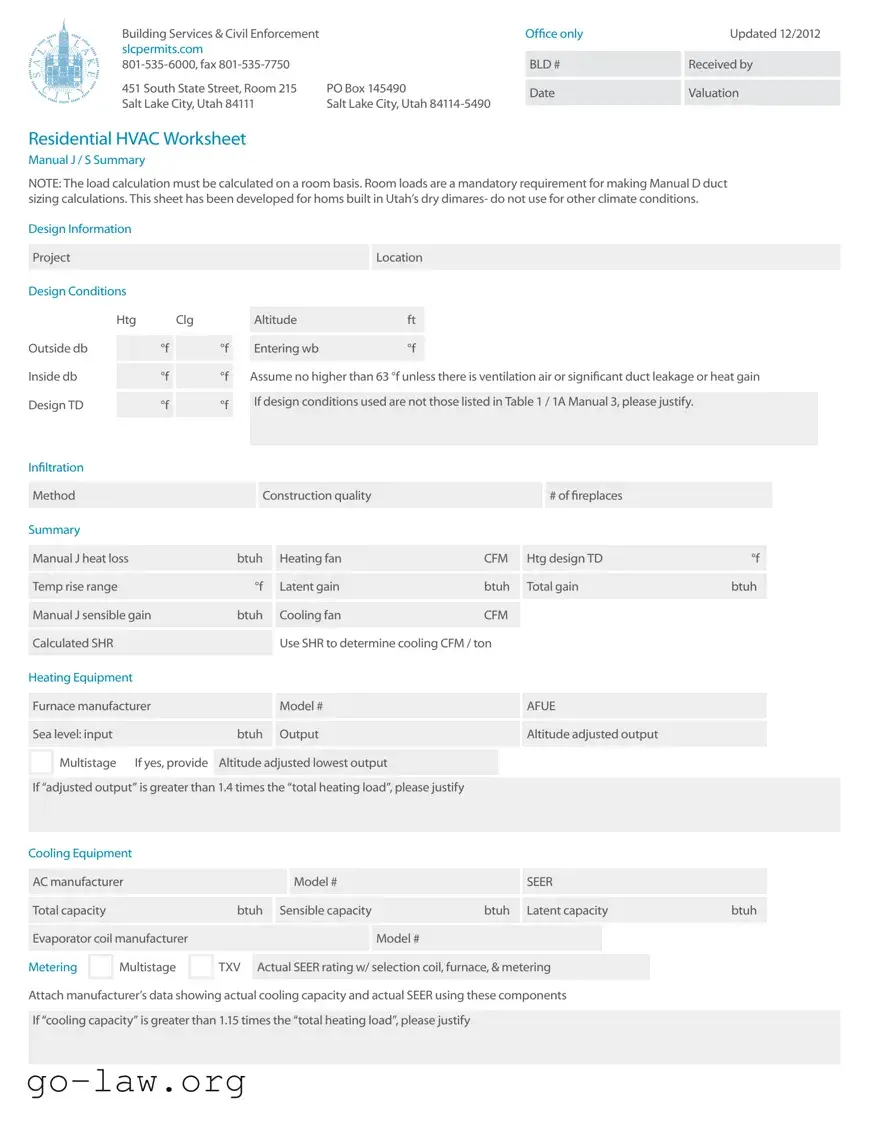

Preview - Manual J Form

Building Services & Civil Enforcement
slcpermits.com
801-535-6000, fax 801-535-7750
451 South State Street, Room 215 PO Box 145490
Salt Lake City, Utah 84111 Salt Lake City, Utah 84114-5490
BLD #
Date
Received by
Valuation
Ofce only Updated 12/2012
Residential HVAC Worksheet
Manual J / S Summary
NOTE: The load calculation must be calculated on a room basis. Room loads are a mandatory requirement for making Manual D duct
sizing calculations. This sheet has been developed for homs built in Utah’s dry dimares- do not use for other climate conditions.
Design Information
Project Location
Htg
Altitude ft
°f
Design Conditions
Assume no higher than 63 °f unless there is ventilation air or signicant duct leakage or heat gain
Clg
Outside db
Inside db
Design TD
Entering wb °f
If design conditions used are not those listed in Table 1 / 1A Manual 3, please justify.
Inltration
Method Construction quality # of replaces
Summary
Manual J heat loss btuh
Temp rise range to °f
Manual J sensible gain btuh
Calculated SHR
Heating fan CFM
Latent gain btuh
Htg design TD °f
Total gain btuh
Cooling fan CFM
Use SHR to determine cooling CFM / ton
Heating Equipment
Furnace manufacturer
Sea level: input btuh
Model #
Output
AFUE
Altitude adjusted output
Multistage If yes, provide
Altitude adjusted lowest output
If “adjusted output” is greater than 1.4 times the “total heating load, please justify
Cooling Equipment
AC manufacturer
Total capacity btuh
Model #
Actual SEER rating w/ selection coil, furnace, & metering
SEER
Metering
Sensible capacity btuh Latent capacity btuh
Evaporator coil manufacturer Model #
TXV
Attach manufacturer’s data showing actual cooling capacity and actual SEER using these components
If “cooling capacity” is greater than 1.15 times the “total heating load, please justify
Multistage
°f
°f °f
°f °f
Manual J / S Summary
Instructions
The load information asked for on the
summary must be taken from the actual
load calculation completed on the project.
Project
Identify project name, lot number- information
that matches the plan submitted.
Location
The city or town must be reasonably close
to actual location. Software used may not
have the specic location in the database.
Outside Dry Bulb, Inside Dry Bulb
Temperature data should be from Table 1 or
Table 1A of ACCA Manual J. It is understood
that there may be situations where a slight
adjustment to this values is necessary. For
example; there may be areas in the Salt
Lake Valley where the low temperature is
historically lower than the airport temperature.
If values are adjusted- please justify the
adjustment. Provide both heating (htg) and
cooling (clg) design temperatures. If inside
or outside design conditions listed are not
the same values listed in Manual J, explain
why the different values were used.
Entering WB
The entering wet-bulb represents the
default value wet-bulb temperature across
the evaporator coil. This will typically be
63 °f (75 °f dry bulb) relative humidity). A
higher wb temperature will result from duct
leakage, un-insulated duct or ventilation
air- any condition that raises the return
air temperature. Use this wb temperature
when selecting cooling condenser from
manufacturer’s comprehensive data.
Design TD
TD: the temperature difference between
inside and outside design temperatures.
Inltration
Inltration calculations are based on the
Construction Quality. Version 7 of Manual ] uses
Best, Average or Poor to evaluate Inltration.
Version 8AE uses Tight, Semi-Tight, Average,
Semi-Loose and Loose to evaluate. Version 8
goes into very specic detail for a more accurate
number. Note method used on summary. Open
rebox replaces that draw air from inside the
home must be included, even if there is a 4”
combustion air’ ex bring air into the replace.
Sealed, direct vent type replaces should
not be counted. Methods include: Simplied
/ Default Method- taken from Table 5A;
Component Leakage Area Method- calculating
inltration based on individual leakage points
taken from Table 5C of Manual J8; or Blower
Door Method, where the actual leakage is
based on a blower door test on the home.
Manual J Heat Loss
This is the whole house winter heat loss taken
directly from the completed attached Load
Calculation. Load must account for all factors
such as loss building components as well as loss
through inltration, ventilation, and duct losses.
Heating Fan
Heating airow typically may be lower than
cooling cfm. Adjusted to insure the temperature
rise across the heat exchanger falls within the
range specied by the manufacturer. Software
will often do this calculation and provide a
correct heating cfm. See Manual S Section 2-6 -
Rise (°f) = Output Capacity ÷ (1.1 x heating cfm)
Manufacturer’s Temperature Rise Range
Range taken from manufacturer’s
performance data. Various manufacturers
may certify ranges from 20 - 70 °f.
Manual J — Sensible Gain
The whole house summer heat gain taken
directly from the completed attached Load
Calculation. Load must account for all factors
including gain through building components,
solar gain, inltration, ventilation and
ducts. Also includes the sensible internal
gains from appliances and people.
Manual 3 — Latent Gain
The gains due to moisture in the air. Large latent
load are typically from moisture migration
into the home from outside in humid climates.
People, cooking, plants, bathing and laundry
washing can all add to the latent load in a home.
Total Gain
The combined total of the sensible and latent
gain. May be referred to as Total Cooling Load.
SHR- Sensible Heat Ratio
Use to determine Cooling cfm per ton.
The ratio of sensible heat gain to total heat
gain. SHR = Sensible Heat Gain ÷ Total
Heat Gain. Recommended air ows: If SHR
is below 0.80 select 350 cfm / ton; if SHR
is between 0.80 & 0.85 select 400 cfm; if
SHR is greater than 0.85, select 450 cfm
/ ton. Note: This cfm is not the nal cfm;
additional adjustment may be required for
Altitude. See next item- Cooling Fan.
Cooling Fan
Software used to perform the calculation
will typically provide a minimum cfm
based on the minimum required size of the
equipment. This number may be adjusted
to meet specic requirements of the home.
Heating and Cooling CFM may or may not
be the same. The cooling CFM should be
around 450 CFM per ton of cooling in Utah’s
dry climates. For higher altitudes, CFM must
be adjust up as detailed in ACCA / ANSI
Manual S. Mountain location should expect
Cooling CFM at 500 CFM per ton and higher.
HEATING
Equipment
List specic equipment to be used. This
information is not required on the Load
Calculation documents, however it must
be provided here to verify equipment
sizing against calculated loads.
AFUE
The AFUE (Annual Fuel Utilization Efciency)
listed here will be compared to that listed on
plans and on energy compliance documents
(RES check or other). It must also match the
equipment actually installed in the home.
Sea Level Input
The listed input on the furnace label
and in manufacturers’ documentation.
Input represents the total amount
of heat in the gas at sea level.
Output
The amount a heat available for discharge
into the conditioned space. The input less any
vent or stack losses, or heat that is carried out
with the products of combustion. May be take
from manufacturers performance data or
calculated using input and furnace efciency.
Altitude Adjusted Output
This number is the actual output that will be
attained after the furnace has been adjusted
for efciency and de-rated for altitude (typically
4% for every 1000’ above sea-level, however
2% /1000’ for many 90+ efcient furnaces).
Some manufacturers may have different
requirements- adjustments should be made
per their requirements. Calculations should be
attached. Example: 80,000 input 91% efcient
furnace in Salt Lake, with manufacturers’
installation instructions specifying 4% /
1000. 80,000 x .91 x .83 = 60,424 btuh.
Multi-Stage Furnace
Multi-stage and modulating equipment is now
available. When comparing to heating load
calculated, use the maximum adjusted output
to verify the furnace is large enough and the
lowest output to insure it is not too large.
Size Justication
Example: If the Total Heating Load = 29954
btuh. A furnace with an adjusted output larger
than 45,000 btuh (29954 x 1.5 = 44931) would
require an explanation justifying the size.
COOLING
Equipment
List specic equipment to be used. Provide
manufacturers comprehensive data for
furnace, furnace blower and condenser, with
capacities at design conditions highlighted.
Condenser SEER
This SEER (Seasonal Energy Efciency Ratio) is
the listed SEER for this model series, not the
exact SEER with components used this system.
Total Capacity
Manufacturers base data is based on ARI
Standard 210 / 240 ratings; 95 °f outdoor air
temperature, 80 °f db / 67 °f wb entering
evaporator. As the Design Conditions
are different than this standard, refer
to manufacturers expanded ratings for
capacities at actual design conditions.
Total capacity is the latent and sensible
capacity at design conditions
Sensible Capacity
The sensible only capacity from
the manufacturer’s expanded
data at design conditions.
Latent Capacity
The latent only capacity from the
manufacturer’s expanded data at design
conditions. NOTE: One half of the excess latent
capacity may be added to the sensible capacity.
Evaporator Coil Make and Model #
List the exact model number for the
evaporator coil used this system. If coil is
from a different manufacturer than the
condenser is used, provide data from both
manufacturers verifying actual performance.
Expansion / Metering
Provide the specic metering used-
orice or TXV (thermostat expansion
valve). If the manufacturer has several
options, list the option used.
Actual SEER Rating
Attach manufacturers’ documentation or ARI
report showing actual cooling capacity, and
actual SEER using the components used this
system. Indoor air handler / furnace blower
must be included in this documentation. Do
not use ARI (ARHI) data for actual sizing.
Size Justication
If cooling capacity is 15% greater than
the calculated Cooling load explain. High
latent (moisture) loads can be listed here.
Special requirements particular to the
customer may also be noted here.
Manual D Calculations & Summary
Project
External static pressure (ESP) IWC
Friction Rate Worksheet & Steps
1
Manufacturer’s Blower Data
CFM
2
Device Pressure Losses
Evaporator
Air lter
Supply register .03
Return grill .03
Other device
Total device losses (DPL) IWC
ASP = ( ESP - DPL ) IWC
3
Available Static Pressure (ASP)
Supply side TEL ft
4
Total Effective Length (TEL)
Return side TEL ft
Total effective length (TEL) = supply side TEL + return side TEL ft
5
Friction Rate Design Value (FR)
FR = ( ( 100 x ASP ) / TEL ) IWX / 100’
This friction rate (FR) calculated in Step 5 is
the rate to be used with a duct calculator or a
friction chart for the duct design on this project.
Attach at a minimum, a one line
diagram showing the duct system
with ttings, sizes, equivalent lengths
through tting and duct lengths.
Mechanical Sizing
Name of contractor / designer
Address
Permit #
FaxPhone
Lot #
Vent height (base of duct to roof exit) ft
Signature
Date
Boiler or furnace input rating btu
De-rated input rating (use .83) btu
Connector rise ft
Connector run ft
Orice size in
Connector size in
Water heater input rating btu
De-rated input rating (.83 minimum) btu
Connector rise ft
Connector run ft
Orice size in
Connector size in
Total heat input of all appliances btu
Vent size for the system in
Combustion air size in²
Boiler or furnace #2 input rating btu
De-rated input rating (use .83) btu
Connector rise ft
Connector run ft
Orice size in
Connector size in
Water heater #2 input rating btu
De-rated input rating (.83 minimum) btu
Connector rise ft
Connector run ft
Orice size in
Connector size in
Attach a complete gas pipe layout & sizing detail to the plan or permit application.
If a manifold is used to connect the appliances on the
horizontal, it shall be the same size as the vent.
To the best of my knowledge, I certify that the information contained
within this document is true, correct, and meets the requirements of the
2009 International Mechanical Code and International Fuel Gas Code.
Mechanical Sizing Worksheet
How-To
Materials needed to ll out this form are the
International fuel gas Code and the Questar
Recommended Good Practices Book.
VENT SIZING
1
Vent height is measured from the
draft diverter or appliance vent
outlet to the top of the vent cap.
2
Connector rise is the height of the vent
connector from the appliance outlet
to the center of the tee in the vent at
the point of connection to the vent.
3
Connector run is the horizontal distance
from the appliance vent outlet to the vent.
4
Go to the International Fuel Gas
Code Chapter 5. Sizing is done to
the appropriate gamma table .
5
The gamma tables are in Btu and not f
DE-RATING
1
See Questar handbook for a step-by-step
formula and the required conversion
numbers. To complete this form:
a
Input is de-rated at 4% per
1000’ in elevation.
b
Example: SLC has a 17% de-ration
factor. On a 100,000 Btu furnace you
multiply 100,000 x .83 = 83,000 Btus
c
On the vent sizing this becomes
the fan min. The fan max is the
listed input rate example fan
min = 83 and fan max = 100
d
The Btu to ft³ conversion number for
SLC is 890 and the specic gravity of
the gas is .60. Divide the new input
rating by 890, 83,000 = 93.258 f. 890
e
Take the ft³ of input and divide it by the
number of burners on the appliance,
this will give you the ft³ / burner. Then
use the orice tables in the Questar
handbook to determine the orice size.
Example if you have 4 burners: 93.258
ft³ / 4 burners = 23.315 ft³ / 1 burner.
Match as close as possible to the
Orice table in the handbook. In this
sample the orice size would be (49)
2
Use the International Fuel Gas Code and the
International Mechanical Code to complete
the vent sizing and the combustion air
sizing. See Chapter 5 IFC for the rules and
the tables to ll out this portion of the form.
ICBO also has available a commentary on
the mechanical code that contains a step-
by-step examples of how to size the vents.
3
The International Mechanical Code
commentary also contains examples to
size the gas pipe. You must show the pipe
lengths, the Btus and the volume of each
appliance and show the size of each length
of pipe. All tables necessary to size gas pipe
are also contained in the International Fuel
Gas Code, and in the Questar handbook.
4
For Salt Lake City use:
a
890 Btu per f
b
A multiplier of .83
c
Specic gravity of .60
d
Combustion air is computed at 1
in² per 3,000 Btu of input of all fuel
burning appliances in the room.
One duct upper 12” of the room.
E
Questar gas has a training program
available to all persons and contractors.

Document Specifics

Fact Name Fact Description
Purpose The Manual J form is used to calculate heating and cooling loads for residential buildings.
Room Basis Calculations must be done on a room-by-room basis to ensure accuracy in load assessments.
Design Conditions Design conditions must reflect local climate, particularly for buildings in Utah's dry climate.
Infiltration Methods Different methods for assessing infiltration include the Simplified Method, Component Leakage Area Method, and Blower Door Method.
Heating Equipment Details on heating equipment, including manufacturer and efficiency ratings, must be provided.
Cooling Equipment Information on cooling systems, including SEER ratings and capacity, is required for accurate calculations.
Altitude Adjustment Heating and cooling outputs must be adjusted for altitude, typically at a rate of 4% per 1000 feet above sea level.
Compliance The Manual J form must comply with the 2009 International Mechanical Code and International Fuel Gas Code.
Documentation All calculations and assumptions must be documented, including justifications for any deviations from standard values.

Manual J: Usage Instruction

Filling out the Manual J form requires careful attention to detail. Each section must be completed accurately to ensure proper calculations for heating and cooling loads. Follow these steps to fill out the form correctly.

  1. Identify the project name and lot number. Ensure this information matches the submitted plans.
  2. Enter the project location, specifying the city or town that is closest to the actual site.
  3. Input the design conditions, including heating and cooling temperatures, based on Table 1 or Table 1A of ACCA Manual J.
  4. Provide the entering wet-bulb temperature, typically set at 63 °F, unless adjustments are necessary due to specific conditions.
  5. Calculate and enter the design temperature difference (TD) between inside and outside temperatures.
  6. Note the infiltration method and the construction quality, including the number of fireplaces.
  7. Record the Manual J heat loss in BTUH, based on the completed load calculation.
  8. Enter the heating fan CFM and ensure the temperature rise falls within the manufacturer’s specified range.
  9. Document the Manual J sensible gain and the total gain, including both sensible and latent gains.
  10. Provide cooling fan CFM, using the sensible heat ratio (SHR) to determine cooling CFM per ton.
  11. List the heating equipment, including the manufacturer, model number, and AFUE rating.
  12. Calculate and enter the sea level input BTUH and the altitude-adjusted output for the heating equipment.
  13. Detail the cooling equipment, including the manufacturer, model number, and SEER rating.
  14. Provide total capacity, sensible capacity, and latent capacity for the cooling equipment.
  15. Attach manufacturer’s data that verifies actual cooling capacity and SEER ratings.
  16. Complete the Manual J / S summary by ensuring all information corresponds with the load calculations.
  17. Sign and date the form, certifying that all information is true and meets the necessary codes.

Learn More on Manual J

What is the Manual J form?

The Manual J form is a standardized document used for calculating heating and cooling loads in residential buildings. It ensures that HVAC systems are properly sized to provide comfort while maintaining energy efficiency. The calculations are based on specific design conditions relevant to the building's location.

Why is a Manual J calculation important?

A Manual J calculation is crucial for several reasons:

  • It helps in selecting the right size HVAC equipment, preventing issues such as short cycling or inadequate heating and cooling.
  • It enhances energy efficiency, which can lead to lower utility bills.
  • It ensures compliance with building codes and standards.

Who should perform the Manual J calculation?

A qualified HVAC contractor or engineer should perform the Manual J calculation. They have the necessary training and experience to ensure accurate results. Homeowners may request a copy of the calculation for their records.

What factors are considered in a Manual J calculation?

The Manual J calculation considers various factors, including:

  • Building orientation and layout
  • Insulation levels
  • Window sizes and types
  • Local climate conditions
  • Occupancy and usage patterns

How often should a Manual J calculation be updated?

A Manual J calculation should be updated whenever significant changes are made to the building. This includes renovations, additions, or changes in insulation or window types. Regular updates help maintain optimal HVAC performance.

What is the difference between Manual J and Manual D?

Manual J focuses on calculating heating and cooling loads, while Manual D is used for duct design. Manual D uses the load calculations from Manual J to determine the appropriate duct sizes and layouts for efficient airflow throughout the building.

Can I use the Manual J form for climates other than Utah's?

No, the Manual J form provided is specifically developed for homes built in Utah's dry climate. Using it for other climates may lead to inaccurate calculations. It is essential to refer to the appropriate guidelines for different climate conditions.

What should I do if my HVAC equipment exceeds the calculated load?

If your HVAC equipment's capacity exceeds the calculated load by a significant margin, you should provide a justification. This could include factors like high latent loads or special customer requirements. Proper documentation is essential for compliance.

How do I submit the Manual J form?

The completed Manual J form should be submitted to the appropriate local building authority or permitting office. Ensure that all required information is included and that the calculations are accurate to avoid delays in the approval process.

Common mistakes

When filling out the Manual J form, many individuals make common mistakes that can lead to inaccurate load calculations. One prevalent error is failing to account for all rooms in the building. Each room's load must be calculated separately, as neglecting even one can skew the overall results. This oversight can result in an HVAC system that is either over- or under-sized, leading to inefficiencies and discomfort.

Another mistake often made involves incorrect temperature data. Users sometimes enter values that do not align with the conditions listed in the Manual J guidelines. For instance, using outside dry bulb temperatures that are not reflective of the actual project location can lead to significant discrepancies. It is essential to refer to the appropriate tables and justify any adjustments made to these values.

Infiltration calculations are also frequently mishandled. Many people overlook the construction quality when determining infiltration rates. The Manual J form requires specific methods to evaluate this factor, such as the Simplified Method or the Blower Door Method. Failing to note the correct method used can compromise the accuracy of the load calculation.

Another common error is miscalculating the heating and cooling fan CFM. Users might assume that the heating airflow will match the cooling airflow, which is often not the case. Each system may have different requirements, and adjustments should be made to ensure that the temperature rise across the heat exchanger falls within the manufacturer's specified range.

Some individuals also neglect to provide adequate justifications for their choices. For example, if the adjusted output of heating equipment exceeds 1.4 times the total heating load, a detailed explanation is necessary. This lack of justification can lead to misunderstandings during inspections or evaluations.

In addition, people often fail to accurately report the AFUE (Annual Fuel Utilization Efficiency) of heating equipment. The AFUE listed must match the actual equipment installed. If there is a discrepancy, it can raise red flags during the review process.

Another mistake relates to the entering wet-bulb temperature. Users may incorrectly set this value, which can affect the overall cooling calculations. The entering wet-bulb temperature should typically be set at 63 °F, and deviations must be justified based on specific conditions in the home.

Additionally, it is crucial to include all relevant equipment information in the Manual J form. Some users forget to list specific models or manufacturers, which can hinder the verification process during inspections. Comprehensive data helps ensure that the system is appropriately sized for the calculated loads.

Lastly, many individuals overlook the need for a complete gas pipe layout and sizing detail. This information is essential for ensuring that all appliances are adequately connected and that the system operates efficiently. Omitting this detail can lead to compliance issues with local codes and regulations.

By being aware of these common mistakes, individuals can improve the accuracy of their Manual J submissions and ensure that their HVAC systems function optimally.

Documents used along the form

The Manual J form is essential for determining the heating and cooling loads in a residential setting. However, it often goes hand-in-hand with several other forms and documents that provide a comprehensive view of HVAC needs and system design. Here’s a brief overview of some commonly used documents alongside the Manual J form:

  • Manual D: This document focuses on duct design and sizing. It helps ensure that the ductwork is appropriately sized for the airflow required by the heating and cooling systems, promoting efficiency and comfort.
  • Manual S: This form provides guidelines for selecting heating and cooling equipment. It ensures that the chosen systems are appropriately sized and efficient for the calculated loads from the Manual J.
  • HVAC Load Calculation Worksheet: This worksheet captures detailed load calculations for both heating and cooling, often summarizing data from the Manual J. It helps confirm that the calculations align with the proposed equipment.
  • Equipment Specification Sheets: These sheets contain detailed information about the HVAC equipment being installed, including performance ratings and efficiency metrics. They ensure that the selected equipment meets the necessary standards.
  • Energy Compliance Documents: These documents are often required to demonstrate that the HVAC system complies with local energy codes and regulations. They help ensure that the installation is not only efficient but also legal.
  • Mechanical Sizing Worksheet: This worksheet is used to determine the proper sizing of mechanical components, such as ductwork and vents, based on the calculated loads. It helps ensure that all parts of the system work together effectively.

Using these documents in conjunction with the Manual J form helps create a holistic approach to HVAC design. This ensures that your system operates efficiently, meets local codes, and provides comfort in your home. Always consult with a qualified professional to navigate these forms effectively.

Similar forms

The Manual J form is primarily used for calculating heating and cooling loads in residential buildings. It shares similarities with the ACCA Manual S, which focuses on the selection and sizing of HVAC equipment. Both documents emphasize the importance of accurate load calculations to ensure the efficiency and effectiveness of heating and cooling systems. While Manual J provides the necessary load data, Manual S uses that data to recommend appropriate equipment, thus creating a seamless connection between load analysis and equipment selection.

Another related document is the ACCA Manual D, which deals with duct design. Like Manual J, it relies on precise load calculations but specifically addresses how to distribute air effectively throughout a building. Manual D provides guidelines for duct sizing based on the airflow requirements determined in Manual J. This ensures that the heating and cooling loads calculated are adequately met by the ductwork system, promoting comfort and energy efficiency.

The ASHRAE Handbook is also comparable to the Manual J form. This comprehensive resource covers a wide range of topics related to HVAC systems, including load calculations, system design, and energy efficiency. While Manual J focuses on residential applications, the ASHRAE Handbook provides broader insights that can apply to both commercial and residential settings. This makes it a valuable tool for professionals seeking a deeper understanding of HVAC principles and practices.

The Energy Star Home Certification guidelines share a common goal with the Manual J form: improving energy efficiency in residential buildings. Both documents emphasize the importance of accurate load calculations and system performance. Energy Star provides criteria for energy-efficient home designs, while Manual J ensures that HVAC systems are appropriately sized to meet those criteria, ultimately leading to lower energy consumption and increased comfort for homeowners.

The RESNET HERS Index is another document that aligns with the Manual J form. This index measures a home's energy efficiency and requires accurate load calculations to assess overall performance. The HERS Index takes into account various factors, including heating and cooling loads, to provide a score that reflects a home's energy efficiency. Thus, Manual J serves as a foundational tool in the process of achieving a favorable HERS score.

The Building Performance Institute (BPI) standards also relate to the Manual J form. BPI focuses on the overall performance of residential buildings, including HVAC systems. Like Manual J, BPI emphasizes the importance of accurate calculations and assessments to ensure that heating and cooling systems operate efficiently. Both documents aim to improve the comfort and energy efficiency of homes, making them complementary resources for industry professionals.

The International Energy Conservation Code (IECC) is another document with a connection to the Manual J form. The IECC sets forth energy efficiency standards for residential buildings, including requirements for HVAC systems. Manual J calculations help demonstrate compliance with these standards by ensuring that heating and cooling loads are accurately assessed, which is crucial for meeting the energy efficiency goals outlined in the IECC.

Lastly, the National Comfort Institute (NCI) guidelines provide additional insights that are similar to those found in the Manual J form. NCI focuses on achieving optimal comfort and efficiency in HVAC systems through proper load calculations and system design. The principles outlined in the Manual J form align with NCI's emphasis on ensuring that HVAC systems are correctly sized and installed to meet the specific needs of a home, ultimately enhancing occupant comfort and reducing energy costs.

Dos and Don'ts

When filling out the Manual J form, consider the following guidelines:

  • Ensure the project name and lot number match the submitted plans.
  • Use accurate temperature data from Table 1 or Table 1A of ACCA Manual J.
  • Justify any adjustments made to outside or inside design conditions.
  • Include all heat loss factors, including infiltration and duct losses.
  • Document the specific equipment to be used for both heating and cooling.
  • Attach manufacturer data that supports the cooling capacity and SEER ratings.
  • Provide clear explanations for any adjustments to heating or cooling loads.
  • Ensure calculations for altitude adjustments are accurate and well-documented.
  • Review the completed form for consistency and accuracy before submission.

Conversely, avoid these common pitfalls:

  • Do not use outdated temperature data or assumptions.
  • Avoid vague justifications for any discrepancies in data.
  • Do not neglect to include infiltration calculations based on construction quality.
  • Refrain from omitting important equipment specifications.
  • Do not rely solely on software outputs without verification.
  • Avoid leaving out supporting documentation for equipment performance.
  • Do not overlook the need for a clear summary of the load calculations.
  • Refrain from submitting the form without thorough checks for errors.
  • Do not ignore local climate conditions when making calculations.

Misconceptions

Understanding the Manual J form is crucial for anyone involved in HVAC system design, but several misconceptions can lead to confusion. Here are nine common misunderstandings:

  • Manual J is only for new constructions. Many believe that Manual J calculations are only necessary for new homes. In reality, it is also important for renovations and upgrades to existing HVAC systems to ensure they are properly sized.
  • It’s a one-size-fits-all approach. Some people think that Manual J can be applied universally without adjustments. However, it must be tailored to specific conditions, such as climate, building materials, and insulation levels, for accurate results.
  • Manual J only considers heating loads. There is a misconception that Manual J focuses solely on heating. In fact, it calculates both heating and cooling loads, which are essential for designing a balanced HVAC system.
  • Calculations can be done without room-by-room analysis. Many assume that a whole-house calculation suffices. However, Manual J requires a detailed room-by-room analysis to accurately assess the heating and cooling needs of each space.
  • Manual J is outdated. Some believe that Manual J is no longer relevant due to advancements in technology. On the contrary, it remains a standard practice in the industry and has been updated to reflect current building practices and energy efficiency standards.
  • It’s only about temperature differences. While temperature differences are a factor, Manual J also considers other elements like infiltration, ventilation, and internal heat gains from appliances and occupants.
  • Using software eliminates the need for understanding the calculations. Many think that software tools can do all the work. However, a solid understanding of Manual J principles is still necessary to interpret results and make informed decisions.
  • It’s only relevant for HVAC professionals. Some homeowners feel that Manual J is only for HVAC experts. In reality, understanding its importance can empower homeowners to make better choices regarding their heating and cooling systems.
  • Manual J calculations are always accurate. While Manual J is a reliable tool, inaccuracies can arise from incorrect data input or assumptions. Ensuring accurate data is crucial for effective calculations.

By addressing these misconceptions, individuals can better appreciate the importance of the Manual J form in HVAC design and ensure their systems operate efficiently and effectively.

Key takeaways

  • Ensure that all calculations are conducted on a room-by-room basis. This is essential for accurate Manual D duct sizing calculations.

  • Use the Manual J form specifically for homes built in Utah's dry climate. Applying it to different climates may lead to inaccurate results.

  • Provide justification for any deviations from standard temperature values listed in the Manual J. This includes adjustments to outside and inside design conditions.

  • Always include actual load calculations in the summary section. This helps verify that the equipment sizing aligns with the calculated heating and cooling loads.
